N98PBM--How to Connect the NVR to NetVideo VMS PC Software

Applies to: N98PBM

Purpose:

The NetVideo VMS can help you to manage your NVR both locally and remotely.

Preparation:

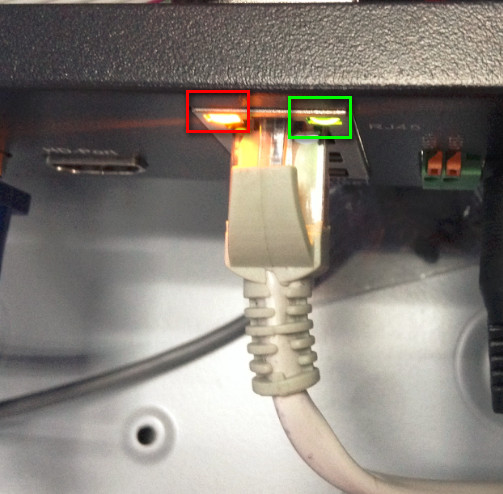

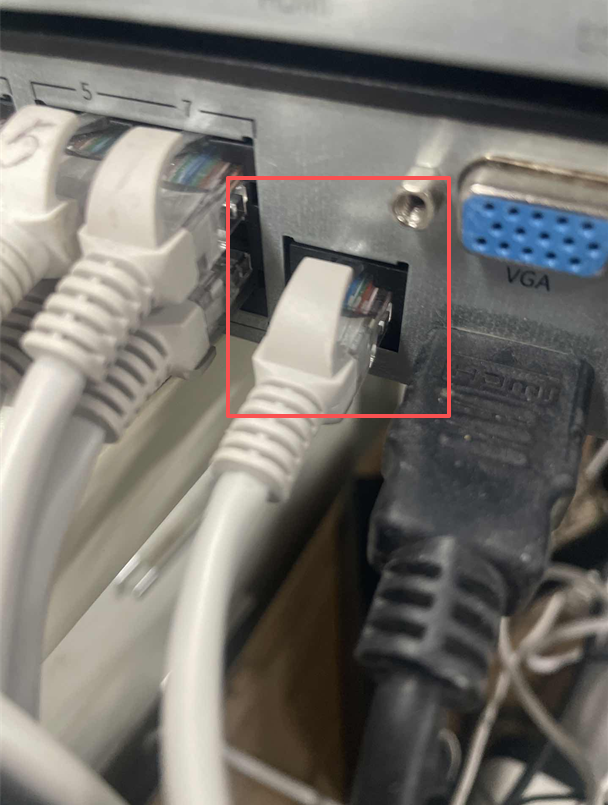

-Please use a network cable from the router to connect the NVR's network port and the router's LAN port:

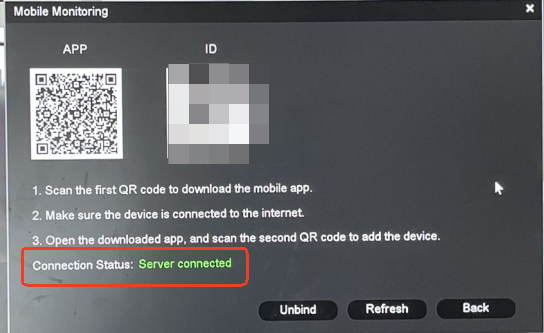

-Then please right-click the mouse on the monitor, then go to the Mobile Monitoring>check the Connection Status:

When this Connection Status is Server connected, it means you can connect this device to the pc software.

If not, please follow the link to modify your network first:

https://support.sannce.com/hc/en-us/articles/46992756579097

Here are the software download links:

1.Software on Windows Computer (Win64 V8.14.0)

Software on Windows Computer (Win64 V8.17.0)

2.Software for MAC Computer

Step:

We suggest you select one of the following two ways to add your devices to the c.

#Method one: Adding by Local Network.

1.Please make sure the NVR ip( such as:192.168.3.58) is the same network segment with your computer's(192.168.3.13):

Please follow the steps to find and check the computer ip address

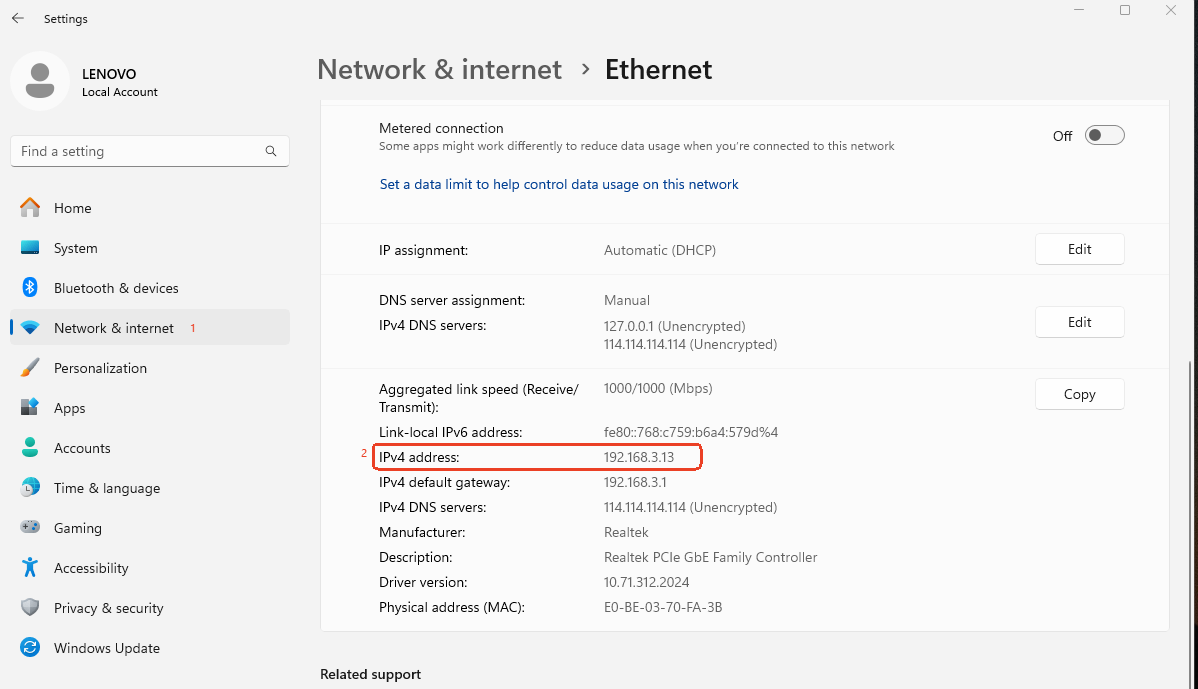

Go to Settings > Network & Internet >Scroll to "IPv4 address".

And please check the NVR ip on your local monitor:
Please right-click the mouse on the monitor, then go to the menu>settings>network>tcp/ip>check the ipv4 address:

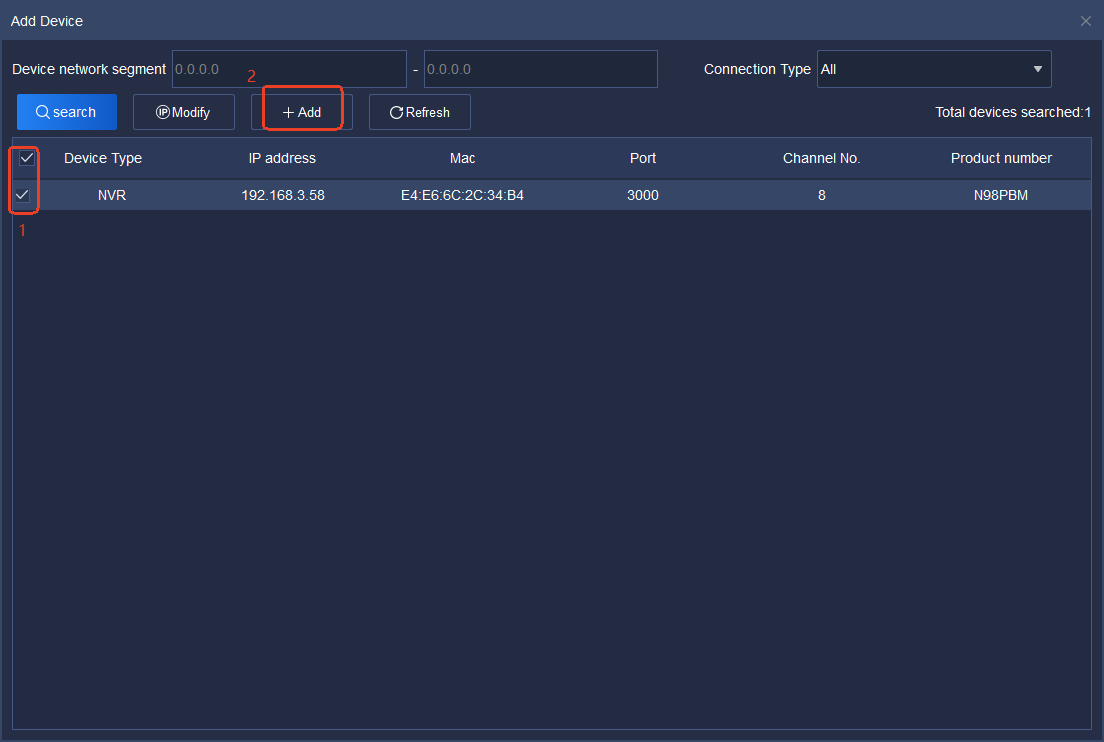

2.Please open NetVideo VMS, and click to Auto Search to search your NVR:

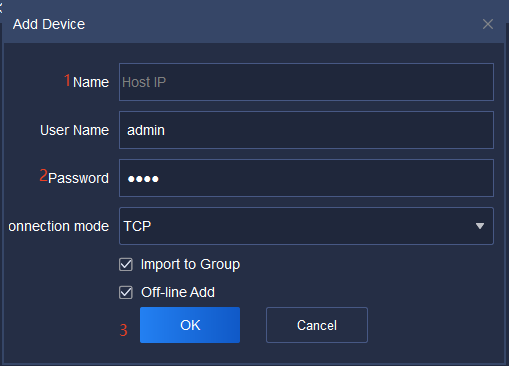

3.After the NVR appears, please select it >click Add>name the NVR name>input the NVR admin password>click OK to save it.

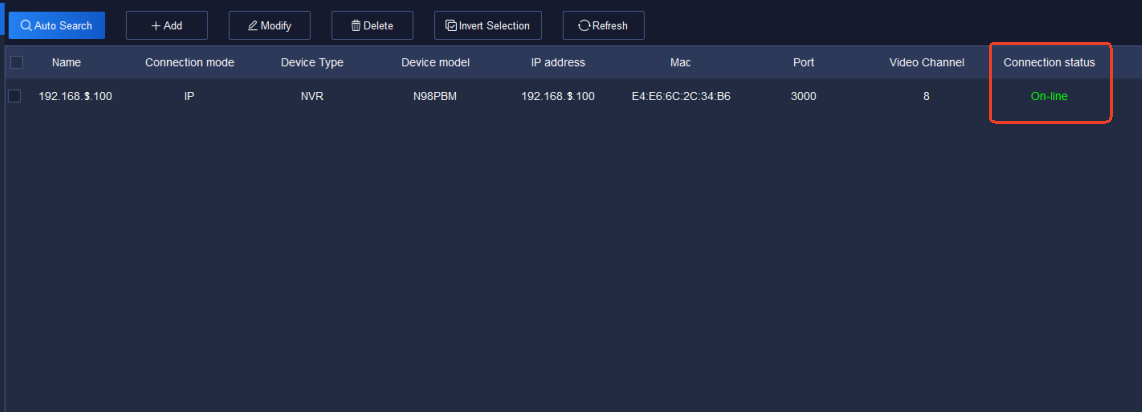

4.When the connection status is online, it means you can see the cameras on the software:

5.Viewing on the software.

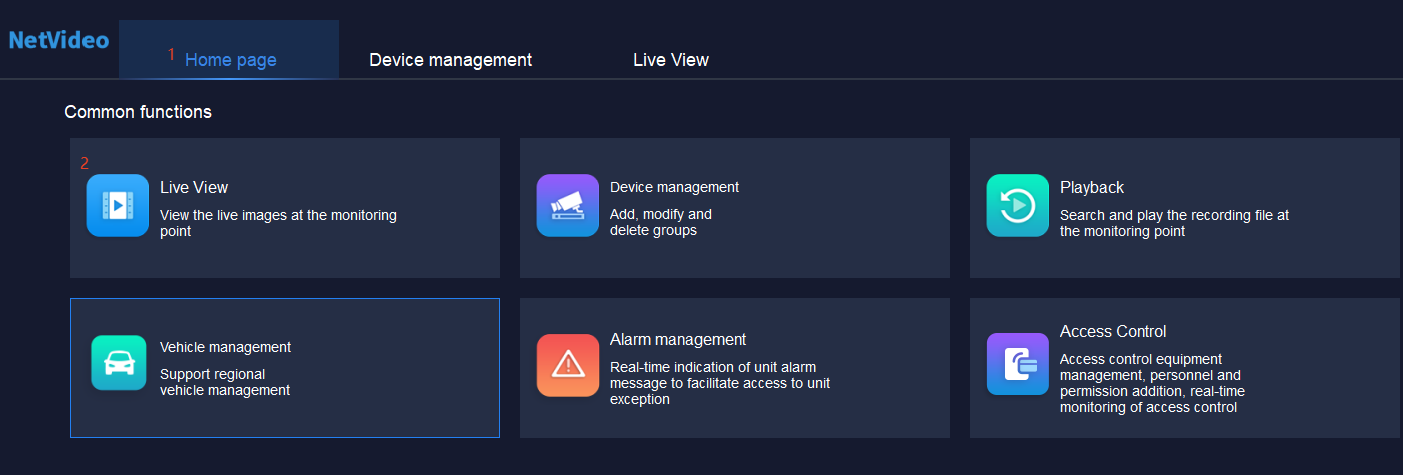

Please click Home page>Live View:

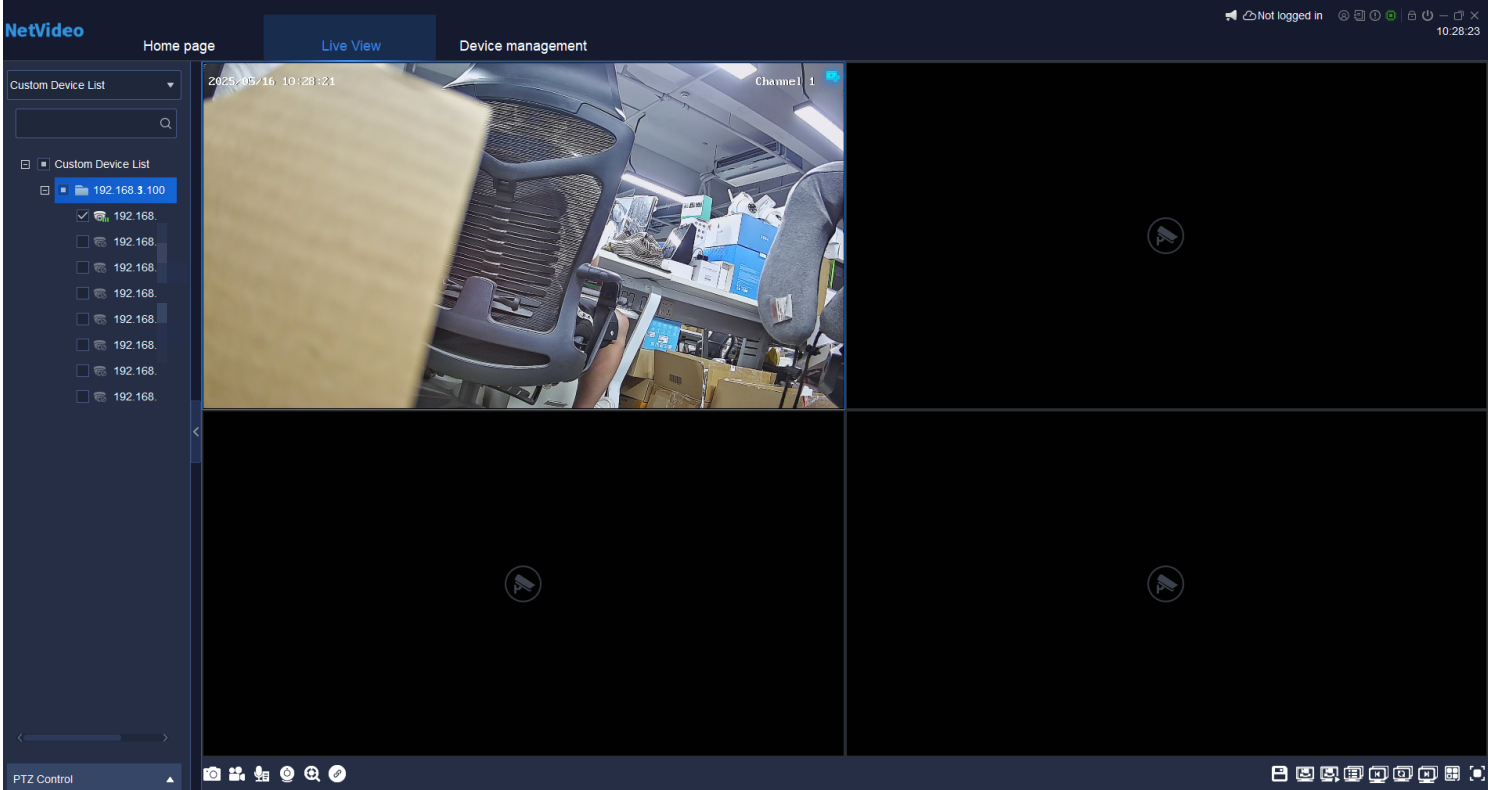

6.Select the file of the NVR ip, then you can see the live view:

#Method two: Adding by P2P Account/Sannce Life APP Account.

1.Please log in with your cloud account (the account you used to log in to the phone app Sannce Life). We recommend that you use this method to log in to it.

If you didn't add the NVR to the app, please follow the link to add it to the app first:

https://support.sannce.com/hc/en-us/articles/46461717486105

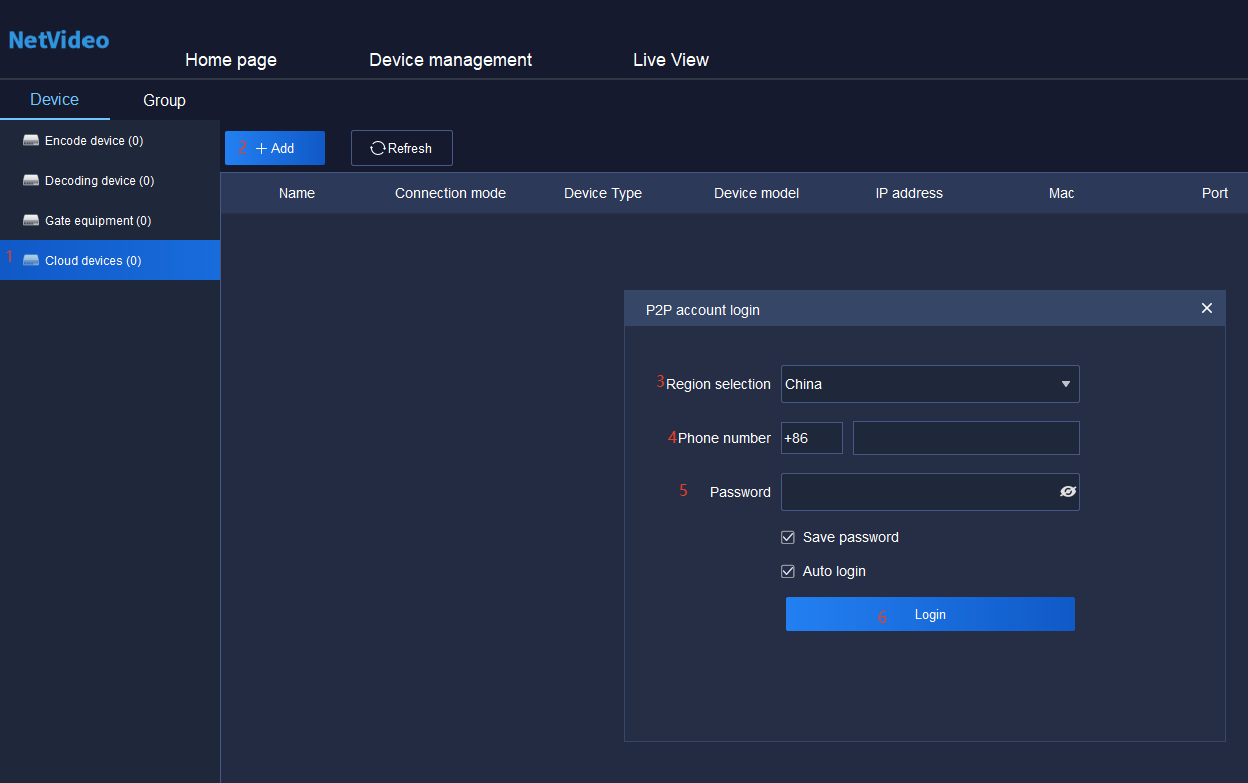

2.Please click Cloud devices>Add>select the Region selection>input the account username>password >click Login:

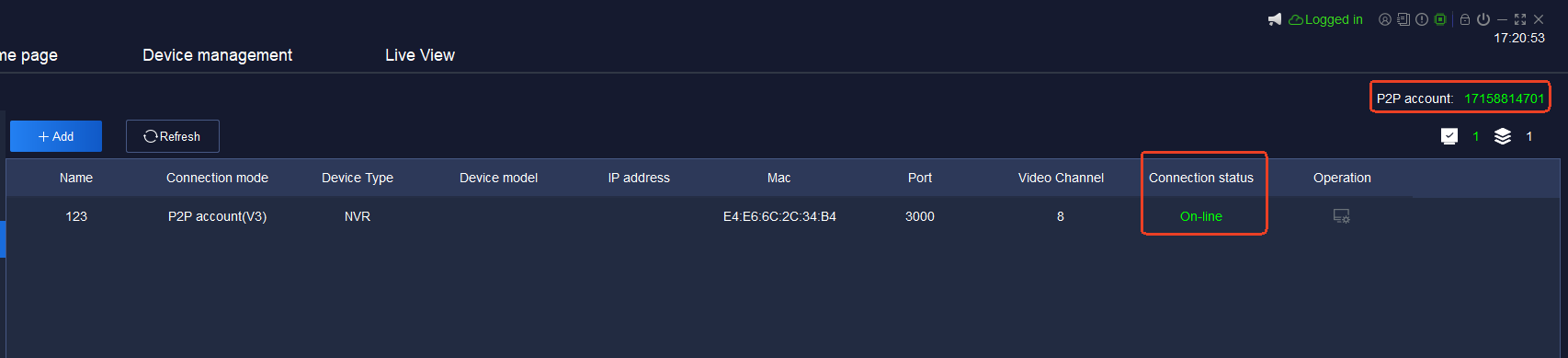

3.After you add the account successfully, it will show the P2P account the top right.

When the connection status is online, it means you can see the cameras on the software:

4.Viewing on the software.

Please click Home page>Live View:

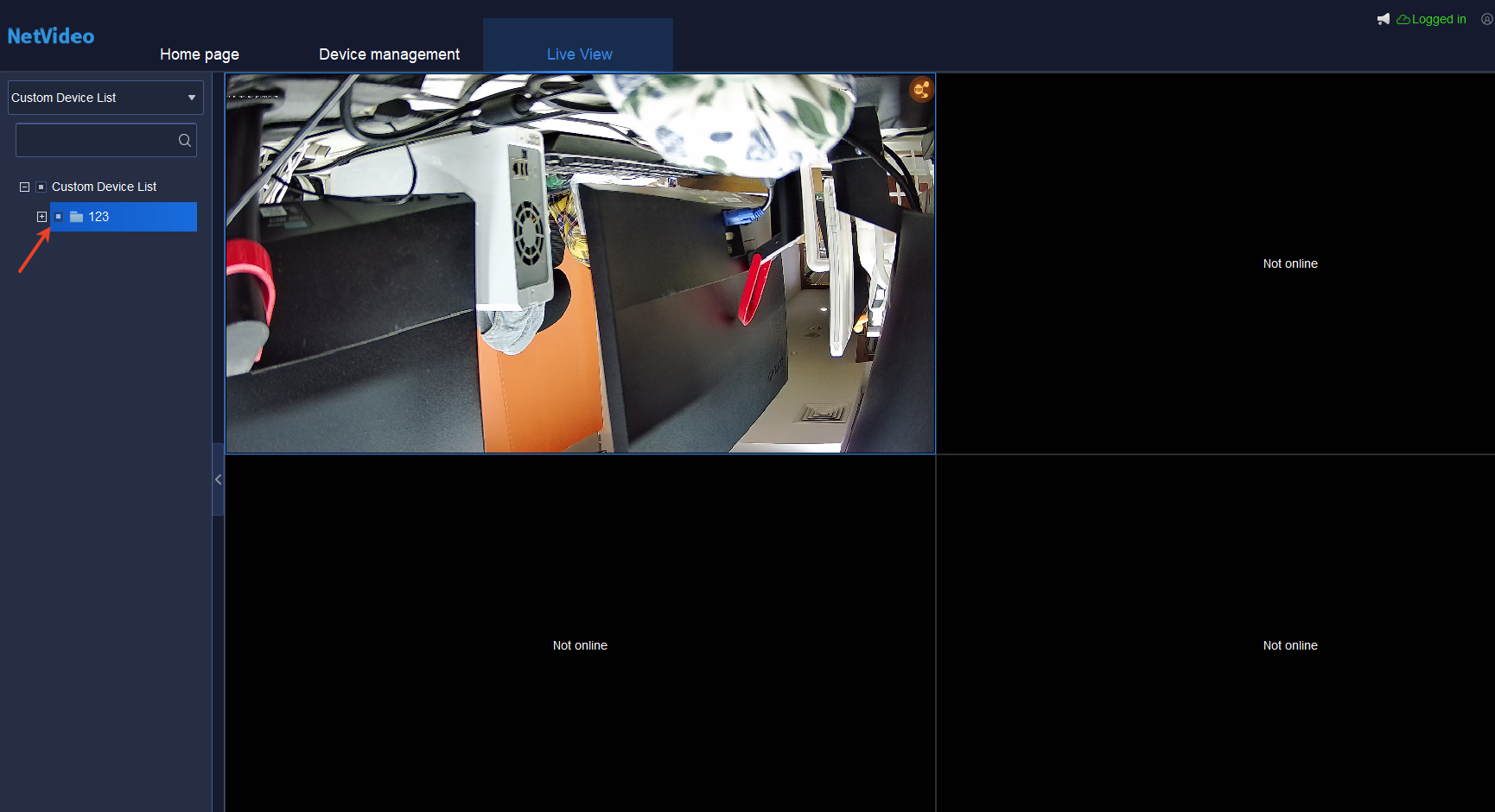

5.Select the file of the NVR, then you can see the live view:

If you have any other questions, please send an email to support@sannce.com for help.
