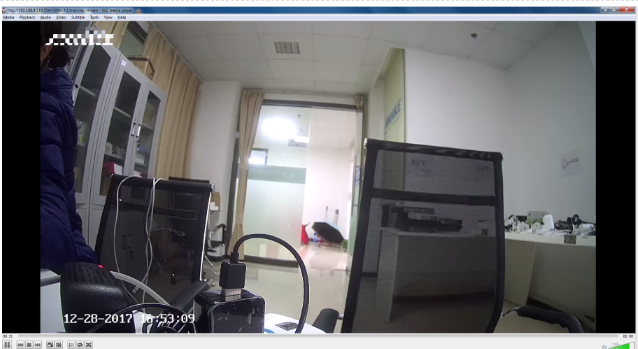

N98PBM--How to View the Cameras on VLC Player by RTSP?

Support Team

Applies to: N98PBM

Format:

rtsp://<username>:<password>@<ip>:<port>/<channel>/<stream>

user name: admin (default).

password: password is the NVR's admin password.

IP: the NVR's IP address.

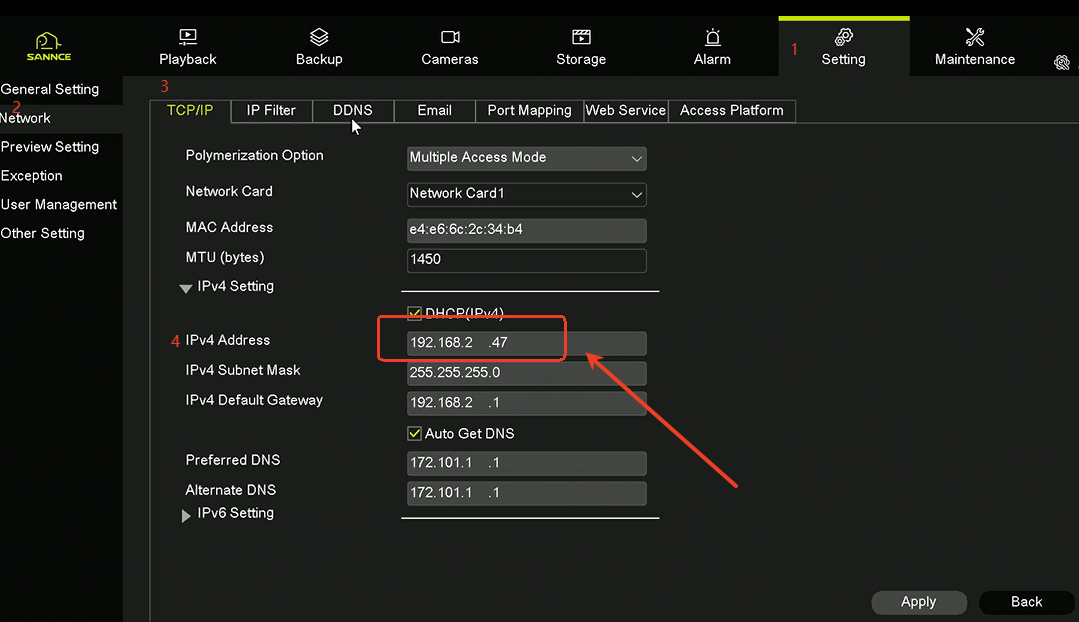

Please right-click the mouse on the monitor, then go to the playback>setting>network>tcp/ip>check the ipv4 address:

port: 554

channel: CH1 (or the channel which you want to add it to, for example, ch2)

subtype: main stream is 1, sub stream is 2, triple stream is 3.

*Fox example:

rtsp://admin:admin@192.168.1.3:554/1/1

Steps:

1. Please connect the NVR to the same router as the computer.

2. Please confirm your NVR ip address.

3. Please install VLC player on the computer.

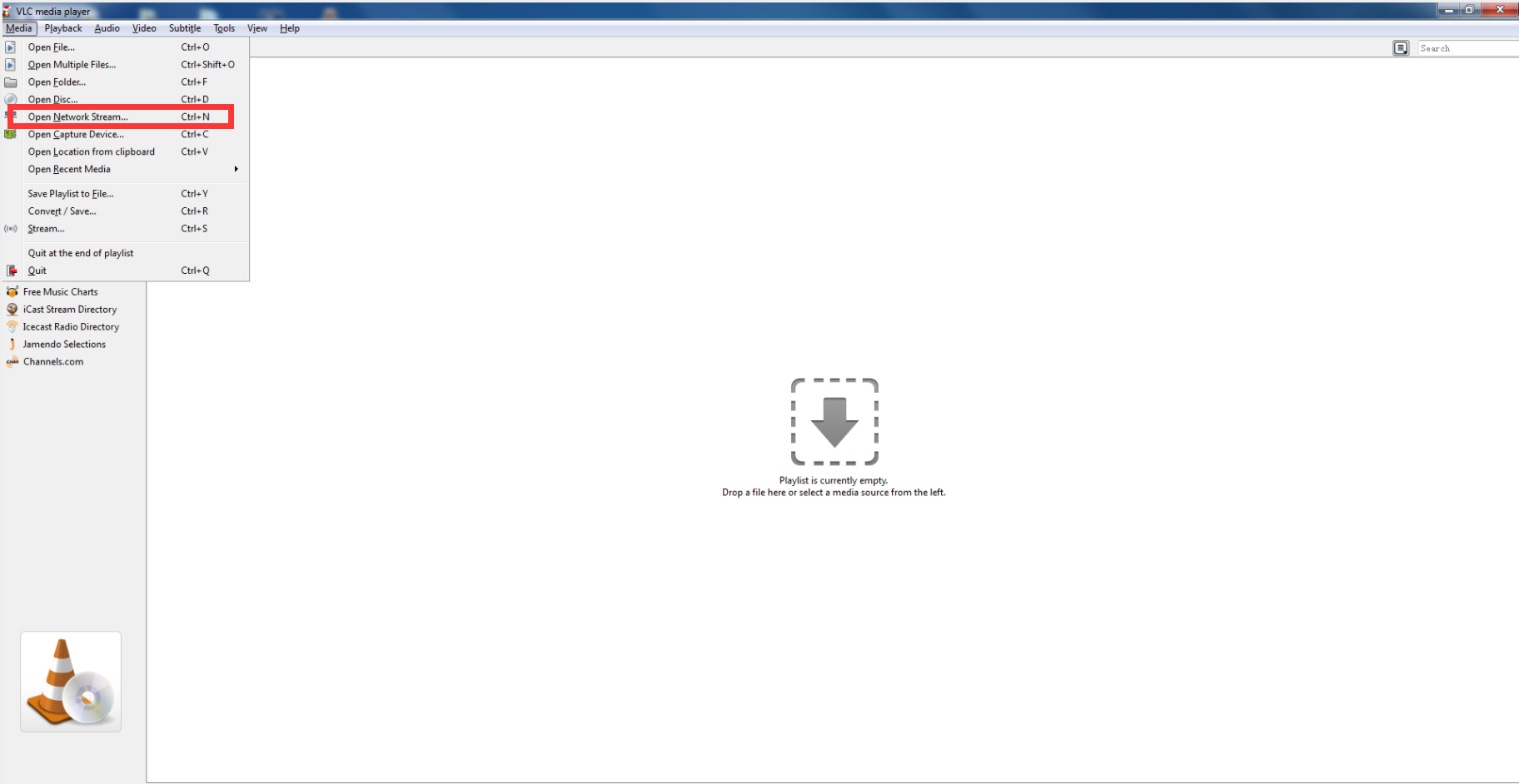

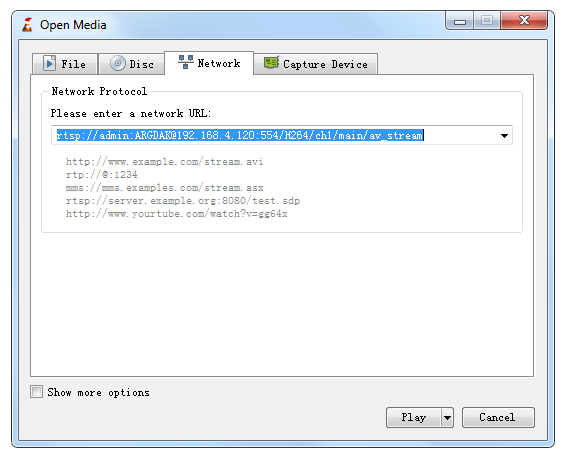

4. Please open the VLC player-Media-Open Network Stream and then input the RTSP URL.

rtsp://admin:admin@192.168.1.3:554/1/1

If you have any other questions, please send an email to support@sannce.com for help.
