Applies to: I51CS
Purpose:
The SANNCE PTZ camera model I51CS can be mounted either on a vertical wall or under ceiling. Below are the steps:

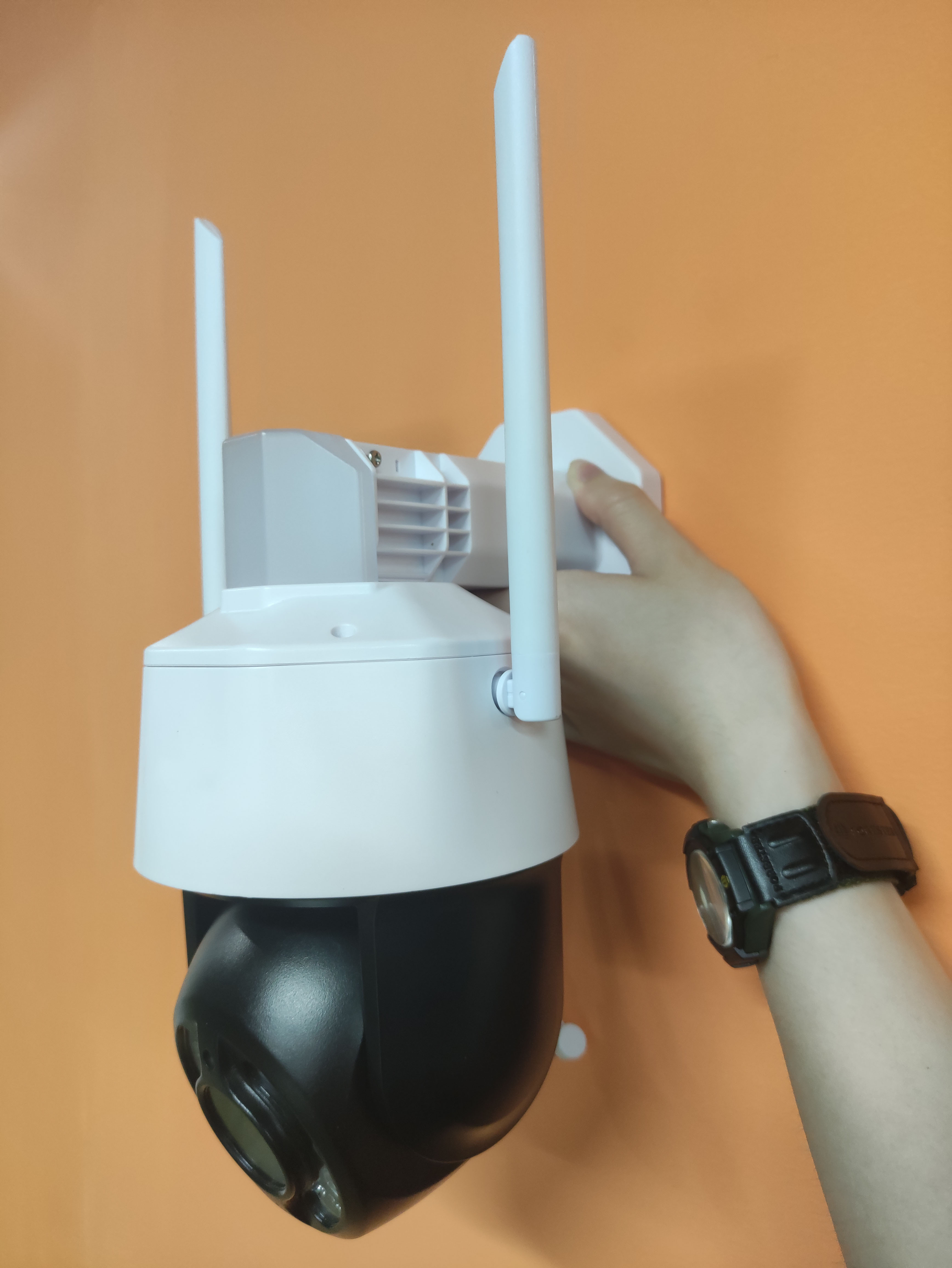

Mount on a vertical wall:

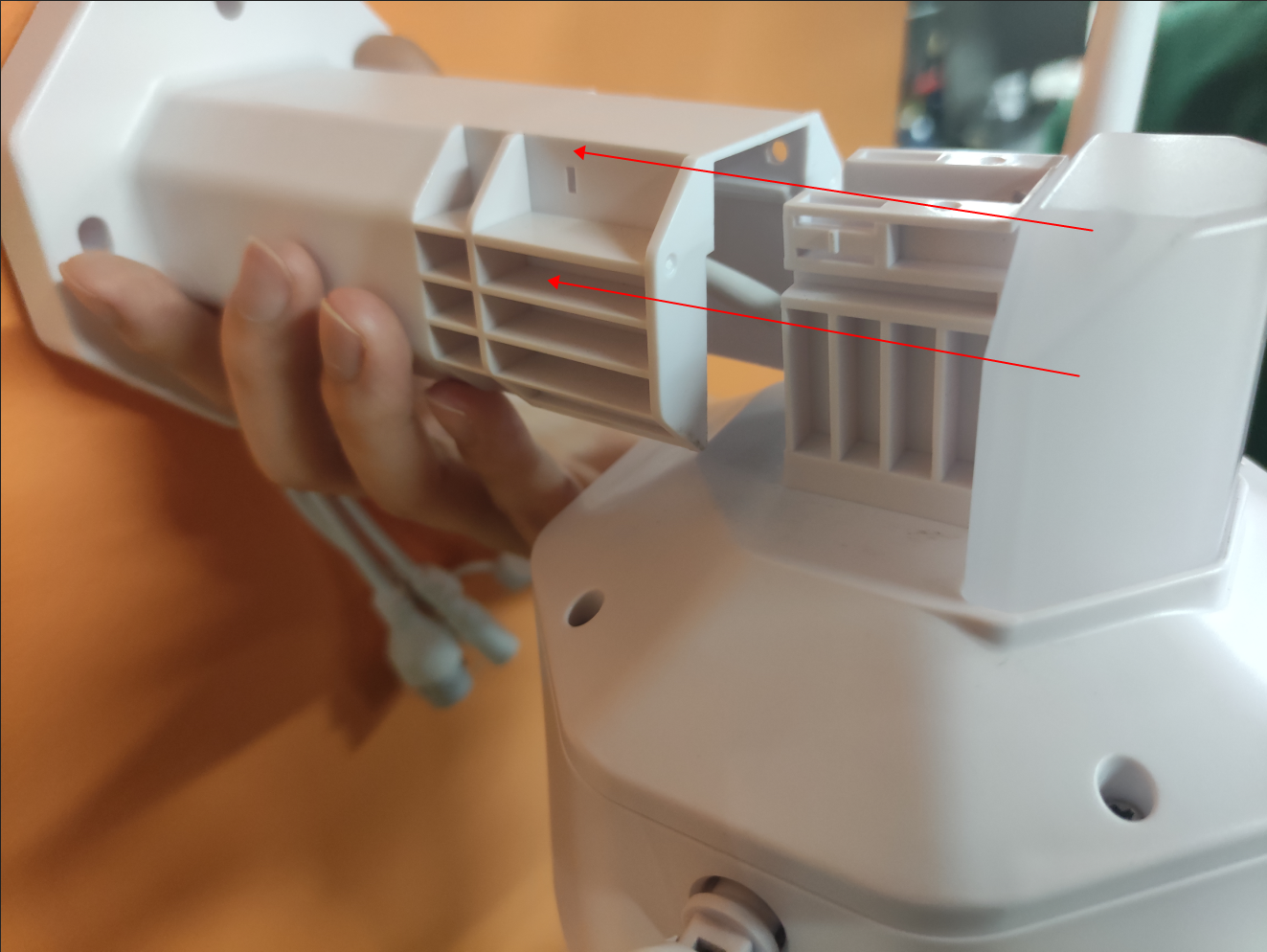

1. Face the mounting bracket down, then push the camera into the bracket as below picture.

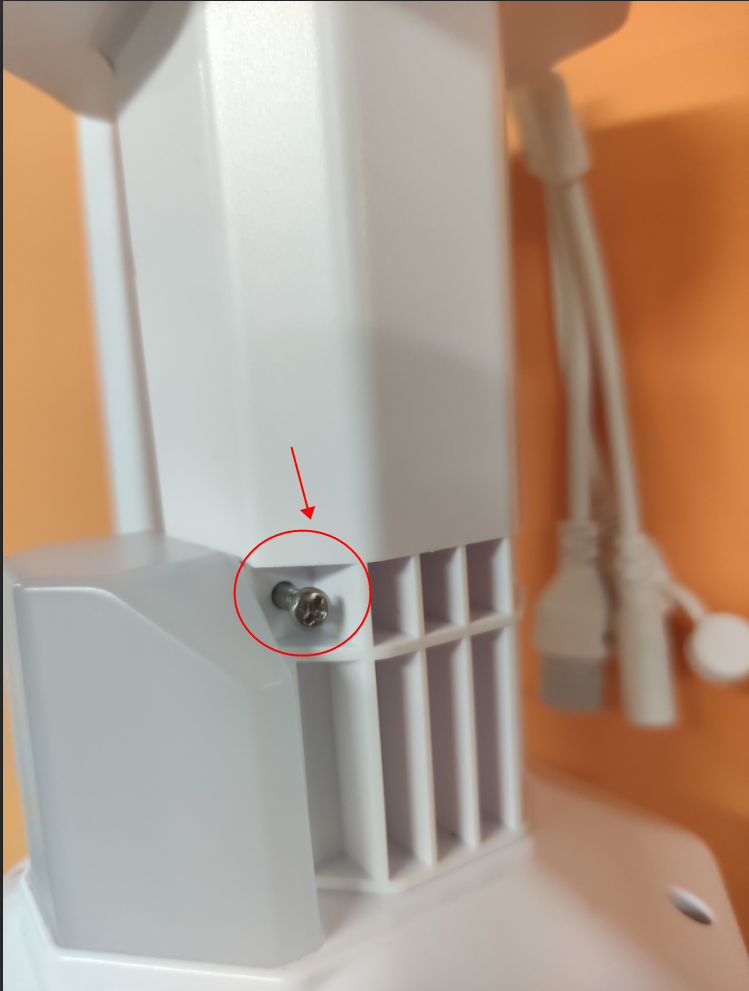

2. Fix the camera to the bracket by a screw, then fix the bracket to wall by screws, too.

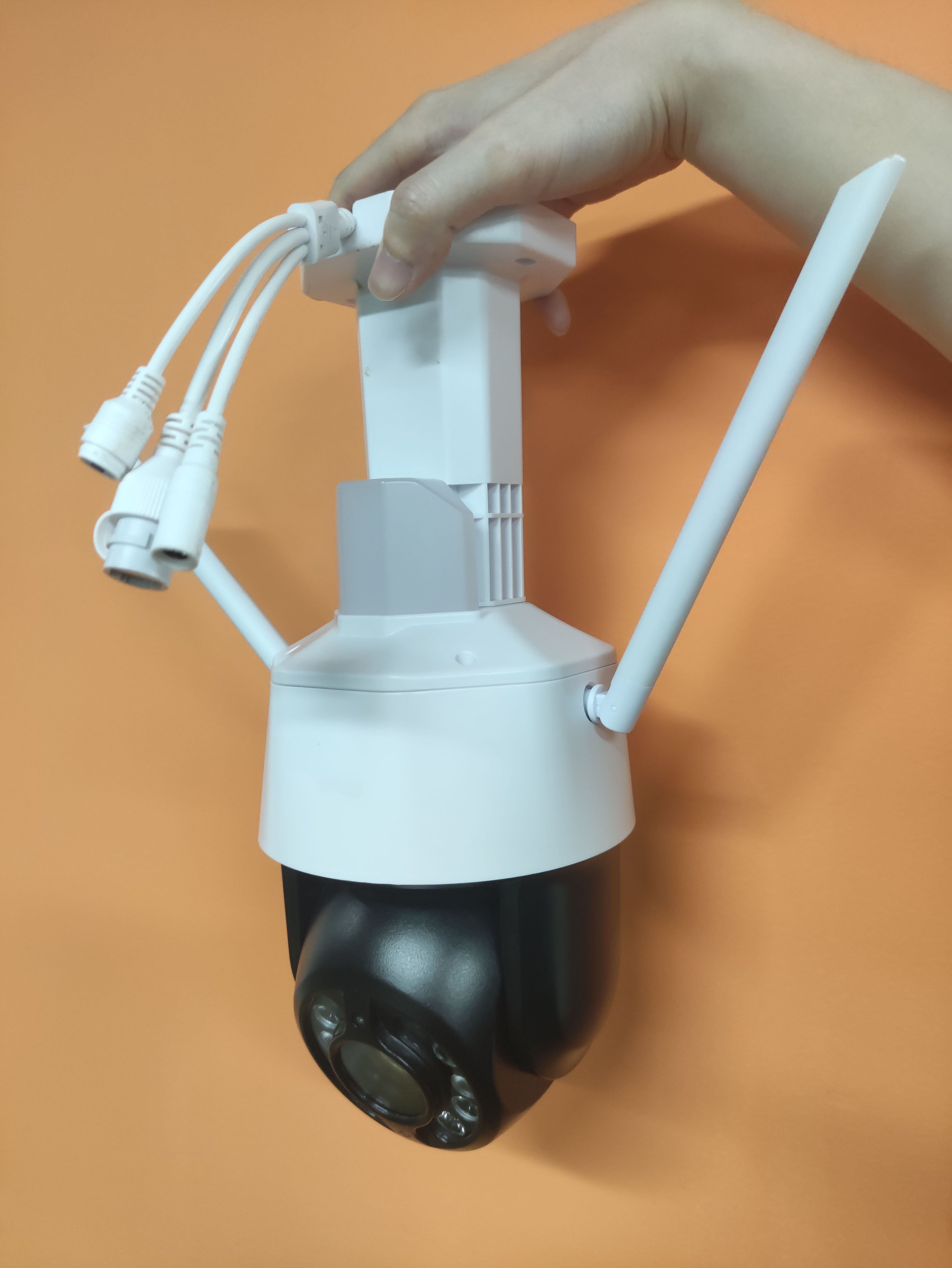

Mount under ceiling:

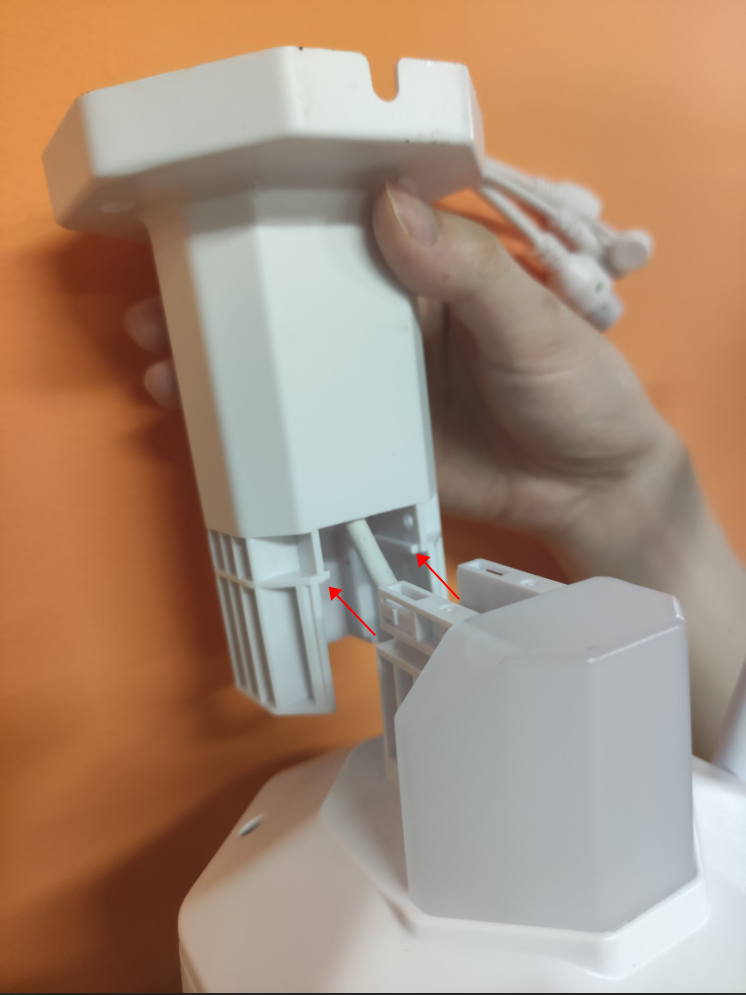

1. Face the mounting bracket front, then push the camera into the bracket as below picture.

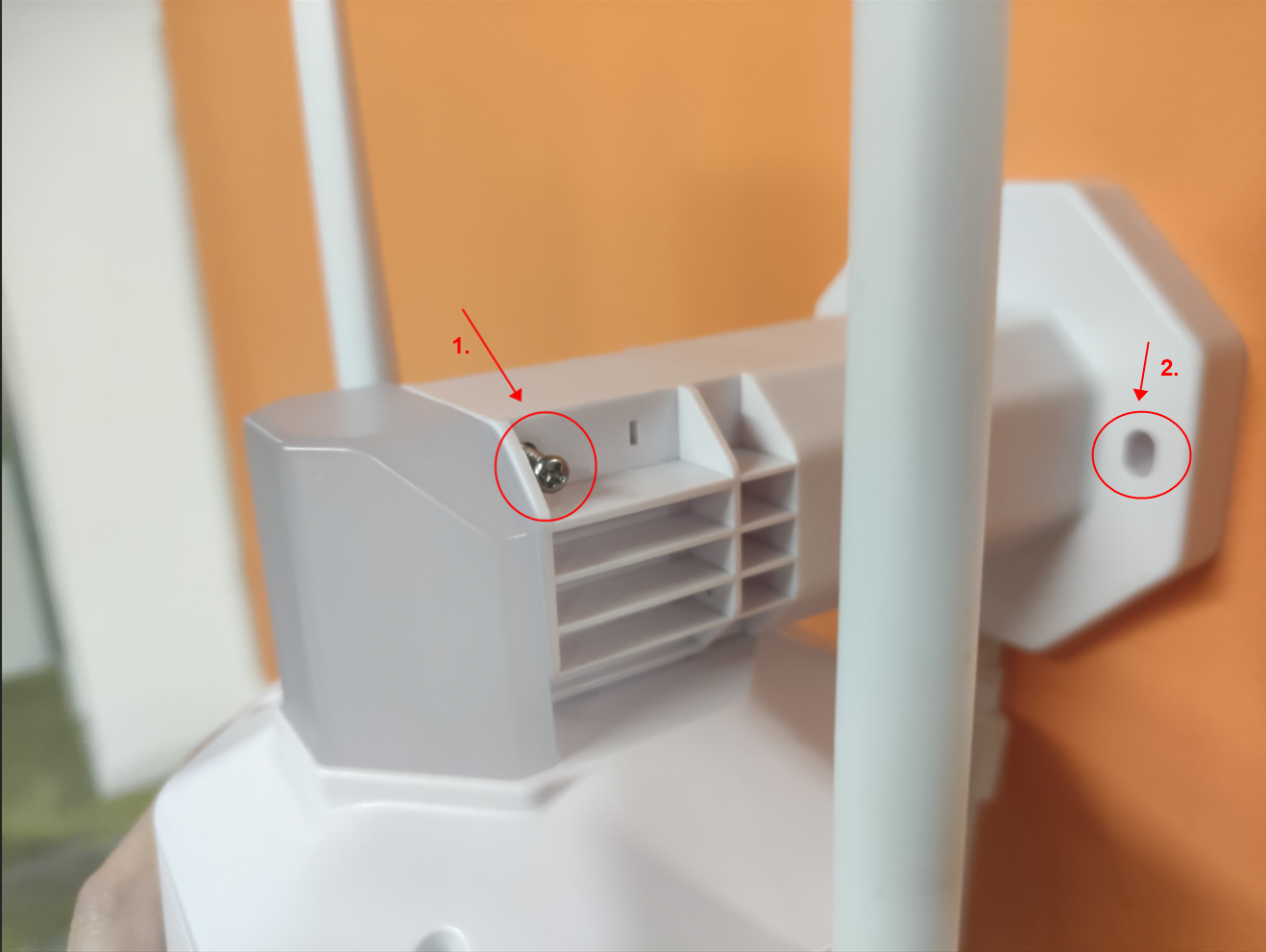

2. Fix the camera to the bracket by a screw, then fix the bracket to wall by screws, too.
